SparkNano LabLine™ system

SparkNano’s LabLine™ system delivers industry-leading Spatial Atomic Layer Deposition (S-ALD) systems, combining superior film quality with the fastest deposition speeds and unmatched flexibility. These advanced systems are designed to support a wide range of spatial ALD processes and accommodate various substrate types, making them the ideal solution for R&D, process development, product development, and even pilot-line production.

Furthermore, the SparkNano LabLine™ system is fully scalable, bridging the gap between laboratory research and full-scale manufacturing, ensuring a smooth and seamless transition to commercial production. The SparkNano LabLine™ system is composed of several key components, each designed to deliver maximum performance and flexibility for a variety of spatial ALD applications. These components can be customized or upgraded based on specific process requirements, ensuring the system adapts to your evolving needs.

sparknano labline series

Key Specification of the SparkNano LabLine™ System

Substrate types

Planar and porous substrates, including wafers, glass, metal, and polymer foils

Precursors and Co-reactants

Precursors: Standard setup with up to four precursor connections. Co-reactants: H₂O (standard), Plasma (optional O₃, H₂, O₂) (Additional precursors and co-reactants available upon request.)

Free Sample Area

Maximum 420 mm x 300 mm

Deposition Temperature

Thermal S-ALD 50°C – 250°C
Plasma-Enhanced S-ALD 50°C – 200°C

Substrate Loading

Manual, via two antechambers (one small, one large)

System Dimensions

4.0 m (W) x 3.6 m (D) x 2.1 m (H)

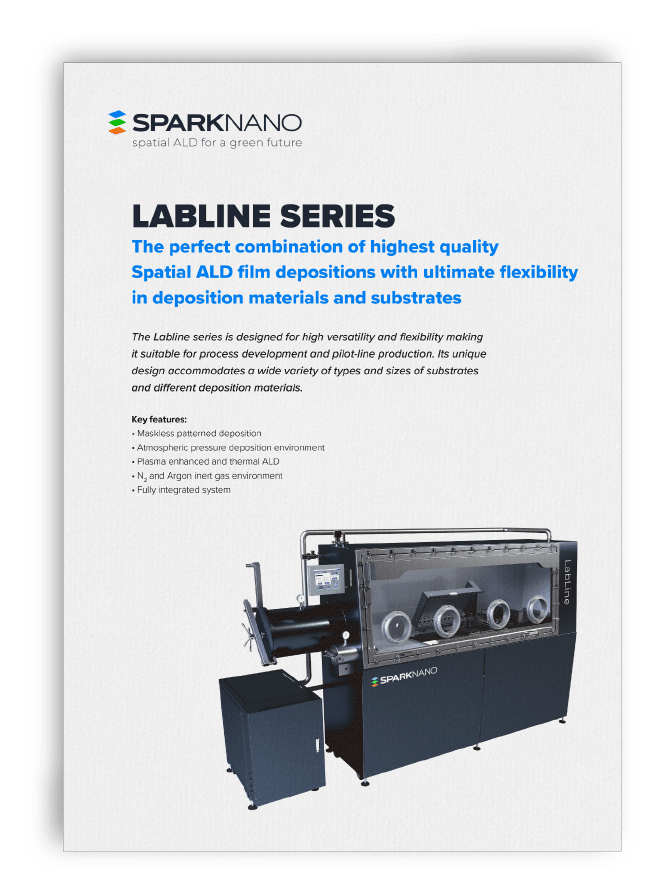

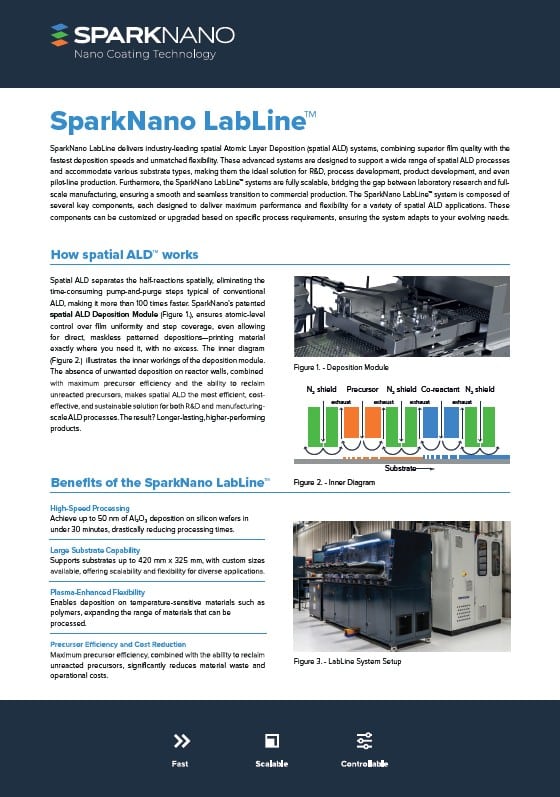

Download the complete product sheet
for the SparkNano LabLine™ now.
